Hozan P-707 Crimping Tool (for Open Barrel Type Contacts), Crimping Pliers, 15 Types of Large and Small Dies, Compatible with a Wide Range of Terminals
Product details
| Management number | 210179494 | Release Date | 2026/04/02 | List Price | $23.55 | Model Number | 210179494 | ||
|---|---|---|---|---|---|---|---|---|---|
| Category | |||||||||

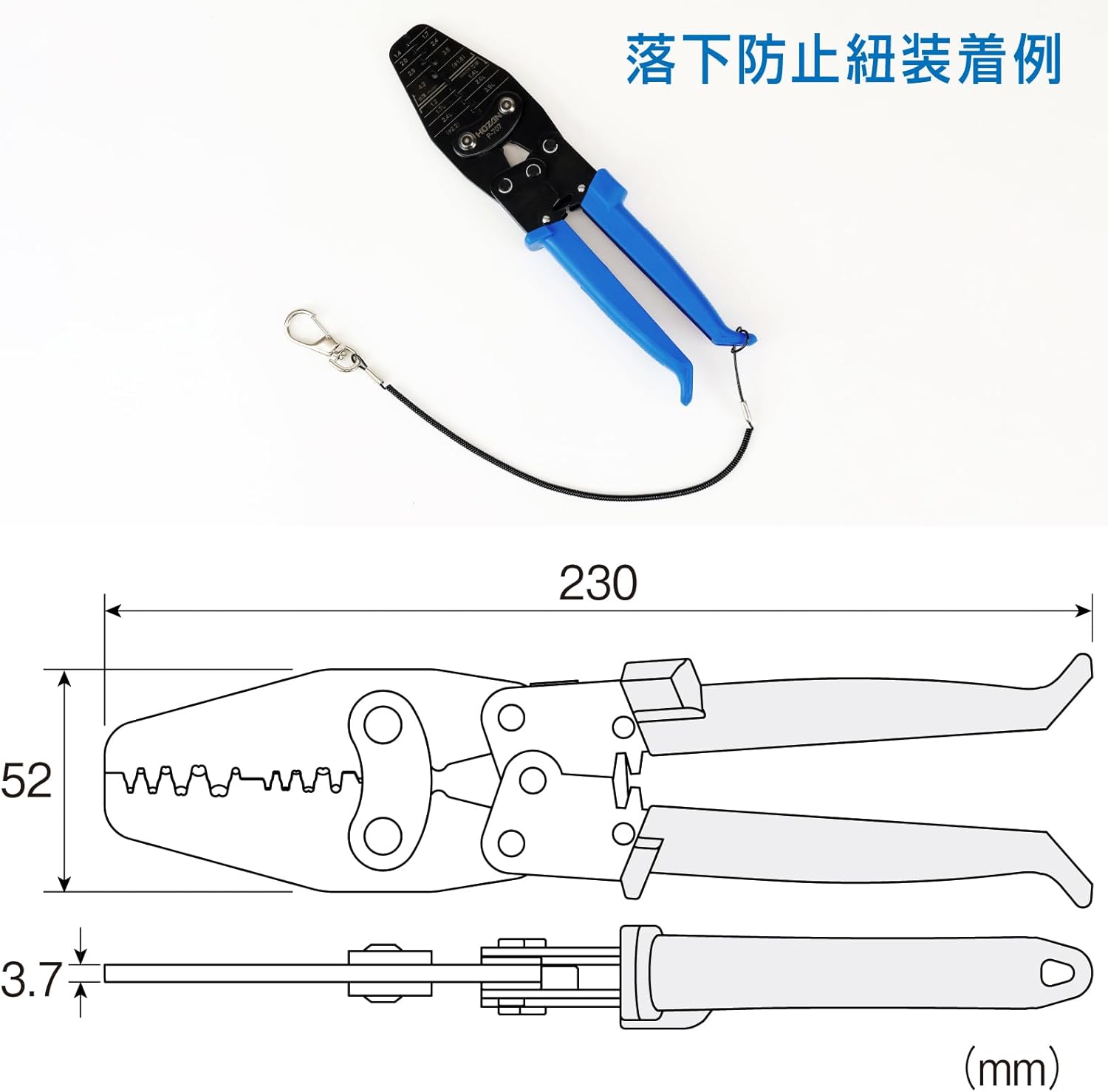

For open barrel terminals (open barrel type contact). 15 different large and small dice allow for a wide range of terminals from small to large. The toggle mechanism allows for more reliable crimping with light force. (The dice part has a thin tiered finish. ) The die shape can be changed gradually from the base to the tip of the plate thickness to 0.1 inch (3.7 mm) to 0.1 inch (2.2 mm), 0.1 inch (3.4 mm) to 0.09 inch (2.3 mm) to accommodate a wide range of terminals from small to large. The dice for covering are also compatible with circular crimping. Adopts an elastomer grip that is easy to grip and slip resistant. You will not feel tired even after working for a long time. In addition, it is environmentally friendly and RoHS compliant. Compatible wire size: AWG #30 - #14 (0.05 - 2.0 sq); Total length: 9.1 inches (230 mm); Weight: 11.1 oz (320 g); Uses: Electrical work, wiring work, electronic tools, mechanical repair, automobile maintenance, electrical appliances
- For open barrel terminals (open barrel contacts) 15 different large and small dice allow for a wide range of terminals from small to large
- Toggle mechanism allows for more reliable crimping with a light force. (The dice part has a thin tiered finish. )

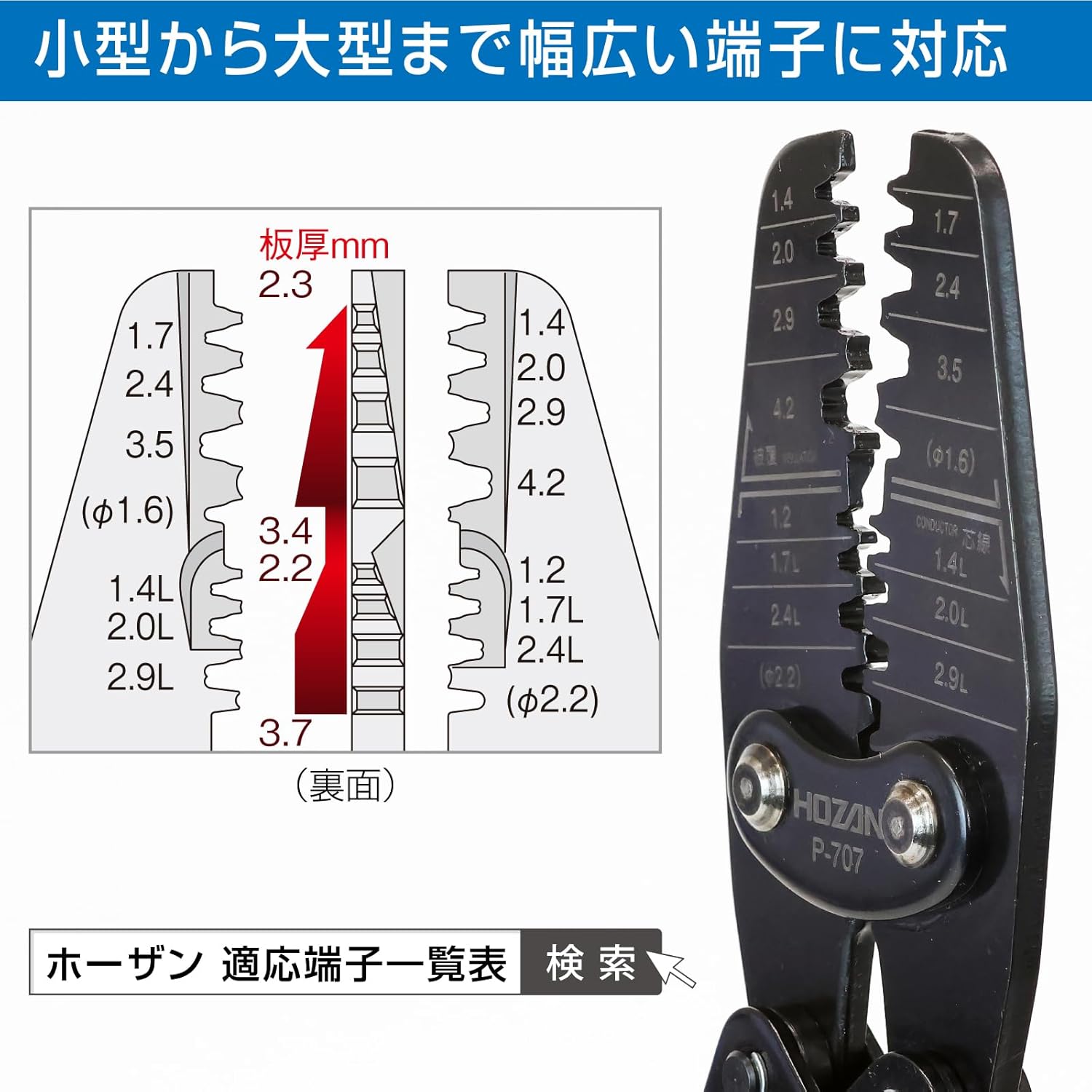

- The dice shape can be changed gradually from the base to the tip of the plate thickness to 0.1 inch (3.7 mm) to 0.1 inch (2.2 mm), 0.1 inch (3.4 mm) to 0.09 inch (2.3 mm) to accommodate a wide range of terminals from small to large
- Coated dice are compatible with circular crimping
- Comfortable and non-slip elastomer grip You will not feel tired even after working for a long time. In addition, it is environmentally friendly and RoHS compliant
- Compatible Wire Size: AWG #30 - #14 (0.05 - 2.0 sq); Total Length: 9.1 inches (230 mm); Weight: 11.1 oz (320 g); Uses: Electrical work, wiring work, electronic tools, mechanical repair, automobile maintenance, electrical appliances
| Color | Blue, Black |
|---|---|
| Grip Type | Contoured |
| Brand Name | HOZAN |
| Unit Count | 10.0 Count |
| Item Weight | 0.32 Kilograms |
| Manufacturer | ホーザン(HOZAN) |
| Model Number | P-707 |
| Item Type Name | Crimping Pliers |
| Handle Material | Rubber |
| Specification Met | RoHS |
| Included Components | No |
| Manufacturer Part Number | P-707 |
| Specific Uses For Product | electrical work, wiring work, electronic tools, mechanical repair, automobile maintenance, electrical appliances |
